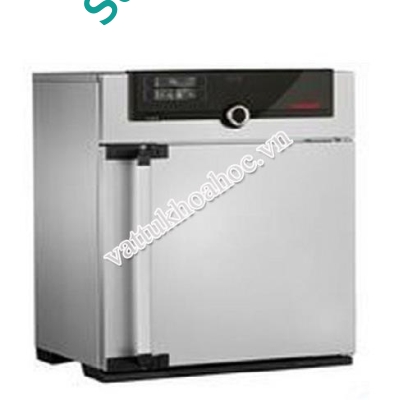

Tủ sấy 32 lít Memmert UF30

Đối lưu cưỡng bức bằng turbin quạt

Màn hiển thị số: 2 cái

Điều chỉnh thời gian từ 1 phút đến 99 ngày

Buồng gia nhiệt: 400 x 320 x 250 mm, 32 l

Tải trọng chứa lớn nhất: 60 kg

Giải nhiệt độ: nhiệt độ phòng đến 300°C (min 5°C)

Điện áp/công suất: 230 V / 1.600 W

Trọng lượng tịnh. 48 kg

Kích thước tủ: 585 x 707 x 434 mm

Bảo hành: 12 tháng

• forced air circulation by quiet air turbine, adjustable in 10% steps
• adjustment of pre-heated fresh air admixture by air flap control in 10% steps
• vent connection with restrictor flap
• adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-colour display
• self-diagnostics for fault analysis
• 1 Pt100 sensor DIN class A in 4-wire-circuit
• digital timer adjustable from 1 minute to 99 days
• parameters adjustable on ControlCOCKPIT: temperature (Celsius or Fahrenheit), fan speed, air flap position, programme time, time zones, summertime/wintertime
• SetpointWAIT function - the process time does not start until the set temperature is reached
• resolution of display for setpoint values 0.1°C up to 99.9°C, 0.5°C from 100°C and for actual values 0.1°C (LED)
• calibration facility directly at ControlCOCKPIT for three freely selectable temperature values
• programme stored in case of power failure
• incl. works calibration certificate for +160°C

• adjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12 880 to switch off the heating approx. 20°C above nominal temperature

• w x h x d: 585 x 707 x 434 mm
• fully insulated stainless steel door with 2-point locking (compression door lock)
• rear zinc-plated steel

• w x h x d: 400 x 320 x 250 mm, 32 l
• easy-to-clean interior,made of stainless steel,reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides
• 1 stainless steel grid
• Max. loading of chamber: 60 kg

• min.10°C above ambient up to +300°C

• 230 V (+/- 10%), 50/60 Hz / approx. 1.600 W
• 115 V (+/- 10%), 50/60 Hz / approx. 1.600 W

• net weight approx. 48 kg
• gross weight carton approx. 59 kg
• dimensions approx.:
  carton w x h x d: 69 x 96 x 66 cm
• the appliances must be transported upright

• 8419 8998

• Federal Republic of Germany

• DE 66812464
