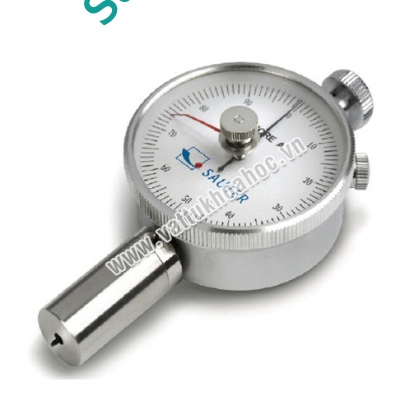

Thiết bị đo độ cứng Shore Am KERN HBA 100-0

Compact handheld durometer with drag indicator

Model: HBA 100-0; Kern - Germany

Typical application: measurement of penetration (Shore)

Particularly recommended for internal comparison measurement. Standard calibrations e. g. to DIN 53505 are often not possible because of very narrow standard tolerances

Shore A rubber, elastomers, neoprene, silicone, vinyl, soft plastics, felt, leather and similar material

Shore D plastics, formica, epoxides, plexiglass etc.

Shore A0 foam, sponge etc.

Max mode: Holds the maximum value in the display

Point mode: Shows one instant value

Can be attached to the test stands SAUTER TI-A0 (for Shore A and A0), TI-D. (for Shore D)

 Delivered in a wooden carrying case

Technical data:

Casing material: metal

Category: Hardness testers

Measuring system

Precision (of [Max]): 3%

Readout: 1

Weighing units: Shore A

Environmental conditions

Maximum operating temperature: 400C

Minimum ambient temperature: 00C

Overall dimensions mounted (WxDxH): 115 mm x 60 mm x 25 mm

Dimensions packaging (WxDxH): 180 mm x 120 mm x 50 mm

Net weight: 160 g

Gross weight: 480 g
